Other Copper

Spec Equivalents: Low Residual P (DLP)

The C12000 - Phosphorus – Deoxidized copper is high on thermal and electrical conductivity. These alloys can freely be formed using copper and possess 95% IACS conductivity, low residual phosphorus, and high embrittlement resistance. The alloy is available in the form of rod, tube, and wire.

Specifications:

ASME SB111	ASTM B152	ASTM B359	ASTM B506	ASTM B716
ASME SB133	ASTM B187	ASTM B372	ASTM B623	ASTM B743
ASME SB359	ASTM B188	ASTM B395	ASTM B638	ASTM B75
ASME SB395	ASTM B224	ASTM B42	ASTM B640	ASTM B88
ASME SB42	ASTM B272	ASTM B442	ASTM B641	MIL B-18907
ASME SB75	ASTM B280	ASTM B447	ASTM B68	MIL B-20292
ASTM B111	ASTM B302	ASTM B451	ASTM B687	MIL T-24107
ASTM B133	ASTM B306	ASTM B5	ASTM B698	MIL T-3235

Chemical Composition:

	Cu	Zn
Min/Max	99.9	0.5

Physical Properties:

Properties	US Customary	Metric
Density	8.89 g/cm3	0.321 lb/in3
Melting point	1083°C	1981°F
Tensile strength, ultimate	221 - 393 MPa	32100 - 57000 psi
Tensile strength, yield (depending on temper)	69.0 - 365 MPa	10000 - 52900 psi
Elongation at break ( in 101.6 mm (4 in.))	55.00%	55.00%
Machinability (UNS C36000 (free-cutting brass) = 100%)	20.00%	20.00%
Poisson's ratio	0.34	0.34
Elastic modulus	117 GPa	16970 ksi

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

Spec Equivalents: High Residual P (DHP)

The UNS C12200 Phosphorus-Deoxidized is the form of commercially pure copper. The alloy is high on thermal and electrical conductivity with excellent corrosion resistance. The alloy of copper combines with the electrical conductivity of metal and signifies the importance of purity. The impurities present in the metal effects the behavior of different grades of unalloyed copper.

Specifications: Equivalent designations to UNS C12200 copper are shown in the following table.

ASME B16.22	ASTM B111	ASTM B370	ASTM B623	ASTM B88
ASME B16.29	ASTM B133	ASTM B379	ASTM B638	MIL B-18907
ASME SB111	ASTM B152	ASTM B395	ASTM B640	MIL B-20292
ASME SB133	ASTM B224	ASTM B42	ASTM B641	MIL T-22214
ASME SB152	ASTM B272	ASTM B432	ASTM B68	MIL T-24107
ASME SB359	ASTM B280	ASTM B442	ASTM B687	MIL T-3235
ASME SB395	ASTM B302	ASTM B447	ASTM B698	SAE J461
ASME SB42	ASTM B306	ASTM B5	ASTM B716	SAE J463
ASME SB543	ASTM B359	ASTM B506	ASTM B743	UNS C12200
ASME SB75	ASTM B360	ASTM B543	ASTM B75

Chemical Composition:

	Cu	Zn
Min/Max	99.9	.50

Physical Properties:

Properties	US Customary	Metric
Density	8.94 g/cm³	0.323 lb/in3
Tensile strength, ultimate	221 - 379 MPa	32100 - 55000 psi
Tensile strength, yield	69.0 - 345 MPa	10000 - 50000 ps
Elongation at break	45.00%	45.00%
Machinability	20.00%	20.00%

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

Spec Equivalents: ASTM B301, ASTM B124, Free-Machining Copper

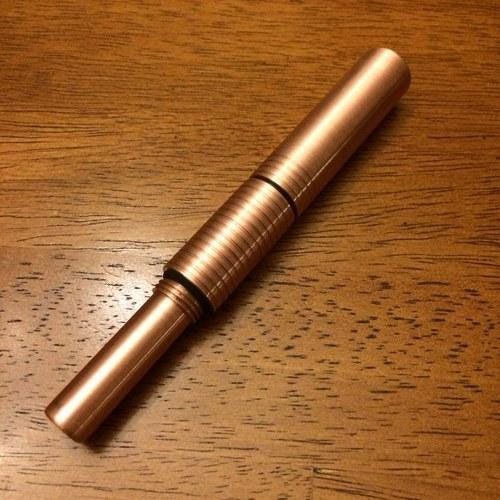

C14500 Tellurium Copper (Deoxidized Grades) has applications in the production of hot forged products, high-speed screw machine products and parts requiring high conductivity, extensive machining, corrosion resistance, copper colour, or a combination of these. The addition of tellurium enhances the strength of the copper alloy and assists in chip breakage, allowing for much higher machining speeds and ultimately longer tool life than with pure copper in high-speed screw machines.

Typical Applications:

• Gas cutting nozzles
• High-speed automatic screw machines
• Electrical Switches on power semiconductors
• Welding Torch tips
• Transformer & Circuit-breaker terminals
• Fasteners
• Production of hot forged products

Specifications:

End Product	Specification
Bar	ASTM B301
Bar, Forging	ASTM B124
Brazing Filler Metal	FEDERAL QQ-B-650
Fittings	ASME B16.22
Forgings, Die	ASTM B283
Rod	ASTM B301, SAE J461, J463
Rod, Forging	ASTM B124
Shapes	ASTM B301
Shapes, Forging	ASTM B124
Shapes, Refinery	ASTM B216
Wire	ASTM B301

Chemical Composition:

	Cu	P	Te
Min/Max	99.90 min	0.004 - 0.012	0.40 - 0.7
Nominals	99.5	0.008	0.55

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Not Recommended
Forgeability Rating	65
Gas Sheilded Arc Welding	Fair
Machinability rating	85
Oxyacetylene Welding	Fair
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.5 · 10 6? per °F (68-212 F)	17.1 · 10 6? per °C (20-100 C)
Coefficient of Thermal Expansion	9.7 · 10 6? per °F (68-392 F)	17.5 · 10 6? per °C (20-200 C)
Coefficient of Thermal Expansion	9.9 · 10 6? per °F (68-572 F)	17.8 · 10 6? per °C (20-300 C)
Density	0.323 lb/in3 @ 68 F	8.94 gm/cm3 @ 20 C
Electrical Conductivity	93 %IACS @ 68 F	0.544 MegaSiemens/cm @ 20 C
Electrical Resistivity	11.2 ohms-cmil/ft @ 68 F	1.86 microhm-cm @ 20 C
Melting Point Liquid US	1976 F	1080 C
Melting Point Solid US	1924 F	1051 C
Modulas of Elasticity in Tension	17000 ksi	117000 MPa
Modulas of Rigidity	6400 ksi	44130 MPa
Specific Gravity	8.94	8.94
Specific Heat Capacity	0.092 Btu/lb/°F at 68 F	393.5 J/kg · °K at 293 K
Thermal Conductivity	205.0 Btu · ft/(hr · Ft2 · °F) at 68 F	354.8W/m · °K at 20 C

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

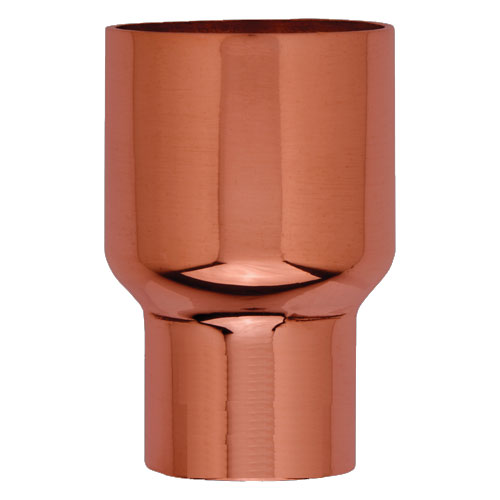

C14700 Sulphur Copper is a free machining sulfur copper alloy. The addition of sulfur to the alloy makes copper sulphide that acts as a chip breaker and serves as the base for free machining capacity.

The properties of sulfur copper combined with the high retention of electrical and thermal conductivity values and makes the alloy suitable for various applications. The alloy can be machined at high speeds and results in less tool wearing.

The addition of phosphorus while manufacturing makes the alloy de-oxidised, which in turn provides resistance from hydrogen embrittlement. The alloy is appreciated for corrosion resistance, good formability and easy soldering.

Specifications:

• BS2874 C111
• C14700
• BS EN12164 CW114C
• CuSP

Chemical Composition:

	Cu+Ag	Sulphur	Ph
Min/Max	99.8% min	0.3 - 0.60%	0.003-0.012%

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Machinability	80
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	Metric
Coefficient of Thermal Expansion	(20-200°C) 17 x 10-6 per °C
Coefficient of Thermal Expansion	-
Density	8.94 gm/cm3 @ 20 C
Electrical Conductivity	93% IACS
Electrical Resistivity	0.0181 microhm m
Melting Point Liquid US	1079 C
Modulas of Elasticity in Tension	12500 Kg/mm²
Specific Gravity	385 J/Kg °K
Thermal Conductivity	347 W/m

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

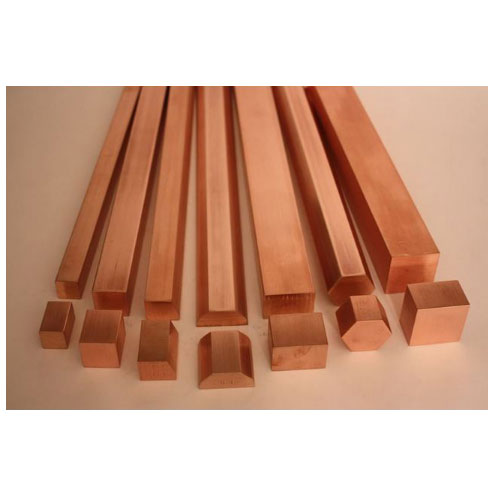

The C15000 Zirconium Copper is the alloy with high softening temperature, which makes it good welding material. The addition of zirconium increases the strength of alloy and raises its softening temperature. The increased strength and softening temperature makes the alloy suitable for adapters, power semi conductor bases, spot welding electrodes and connectors.

Applications:

• CONSUMER : Pencil-type & Light Soldering Guns: Tips, Rod Extensions
• ELECTRICAL : Switches, Commutators, Resistance Welding Electrodes, Circuit Breaker Switches, Stud Bases for Power Transmitters & Rectifiers
• INDUSTRIAL : Resistance Welding Tips, Welding Wheels, Connectors, Solderless Wrapped

Specifications:

End Product	Specification
Rod	SAE J461, J463

Chemical Composition:

	Cu	Zr
Min/Max	99.8	0.10 - 0.20
Nominals	-	0.15

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Good
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Excellent
Coated Metal Arc Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Machinability	20
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.4 · 10 6? per °F (68-212 F)	16.9 · 10 6? per °C (20-100 C)
Coefficient of Thermal Expansion	9.8 · 10 6? per °F (68-572 F)	17.6 · 10 6? per °C (20-300 C)
Density	0.321 lb/in3 @ 68 F	8.89 gm/cm3 @ 20 C
Electrical Conductivity	93 %IACS @ 68 F	0.544 MegaSiemens/cm @ 20 C
Electrical Resistivity	11.2 ohms-cmil/ft @ 68 F	1.86 microhm-cm @ 20 C
Melting Point Liquid US	1976 F	1080 C
Melting Point Solid US	1796 F	980 C
Modulas of Elasticity in Tension	18700 ksi	129000 MPa
Specific Gravity	8.89	8.89
Specific Heat Capacity	0.092 Btu/lb/°F @ 68 F	393.5 J/kg · °K @ 293 K
Thermal Conductivity	212.0 Btu · ft/(hr · ft2 ·°F) @ 68 F	366.9 W/m · °K @ 20 C

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

The C16200 Cadmium Copper alloy is suitable for industrial applications where high electrical conductivity and high tensile strength is required. The alloy is the combination of 99.0% copper and 1.0% cadmium that results in these incompatible properties.

Applications:

• Electrical Industry : Resistance Welding Electrodes, Circuit Breaker Switches, Stud Bases for Power Transmitters, Electrical Conductor Material
• Consumer : Rod Extensions, Pencil-type, Light Soldering Guns, Tips
• Industrial : Connectors, Solderless Wrapped, Welding Wheels, Trolley Wires

Specifications:

Product Type	Temper Type
Bar	SAE J461, J463
Forgings	SAE J461, J463
Rod	SAE J461, J463
Wire	AMS B624, B105 Military MIL-W-82598

Chemical Composition:

	Al	Be	Cd	Cu	Fe
Min/Max	-	-	07/01/02	Rem	0.02
Nominals	-	-	1	99	-

Fabrication:

Joining Technique	Suitability
Brazing	Excellent
Butt Weld	Good
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Good
Machinability rating	20
Oxyacetylene Welding	Good
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Melting Point - Liquidus	1969 F	1076 C
Melting Point - Solidus	1886 F	1030 C
Density	0.321 lb/in³ at 68 F	8.89 gm/cm³ @ 20 C
Specific Gravity	8.89	8.89
Electrical Resistivity	11.50 ohms-cmil/ft @ 68 F	1.91 microhm-cm @ 20 C
Electrical Conductivity	90 % IACS @ 68 F	0.527 MegaSiemens/cm @ 20 C
Thermal Conductivity	208 Btu · ft/(hr · ft2·oF)at 68F	360.0 W/m ·  oK at 20 C
Modulas of Elasticity in Tension	17000 ksi	117000 MPa
Modulus of Rigidity	6400 ksi	44130 MPa
Specific Heat Capacity	0.090 Btu/lb/°F at 68 F	377.1 J/kg ·  °K at 293 K

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

The pure and unalloyed copper is usually impure and is soft and ductile. The addition of tin to the copper provides it good hot workability, high strength and wear resistance properties. The C16500 cadmium tin copper is used for soldering while joining components in truck radiators and automobiles.

Typical Uses:

• Electrical : Springs, Contacts, Flat Cable, Trolley WIre, Clips
• Industrial : Resistance Welding Electrodes

Specifications:

Product Type	Temper Type
Wire, Trolley	ASTM B9
Wire	ASTM B105

Chemical Composition:

	Al	Sn	Cd	Cu	Fe
Min/Max	-	.50 - .7	.6 - 1.0	Rem	0.02
Nominals	-	0.6	0.8	98.6	-

Fabrication:

Joining Technique	Suitability
Brazing	Excellent
Butt Weld	Excellent
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Fair
Machinability rating	20
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Melting Point - Liquidus	1958 F	1070 C
Melting Point - Solidus	-	-
Density	0.321 lb/in³ at 68 F	8.89 gm/cm³ @ 20 C
Specific Gravity	8.89	8.89
Electrical Resistivity	17.290 ohms-cmil/ft @ 68 F	2.87 microhm-cm @ 20 C
Electrical Conductivity	60 % IACS @ 68 F	0.351 Mega Siemens / cm @ 20 C
Thermal Conductivity	146 Btu · ft/(hr · ft2·oF)at 68F	252.7 W/m · oK at 20 C
Modulas of Elasticity in Tension	17000 ksi	117000 MPa
Modulus of Rigidity	-	-
Specific Heat Capacity	0.090 Btu/lb/°F at 68 F	377.1 J/kg · °K at 293 K

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

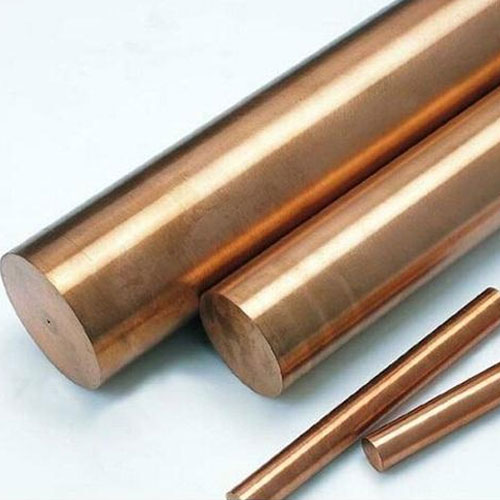

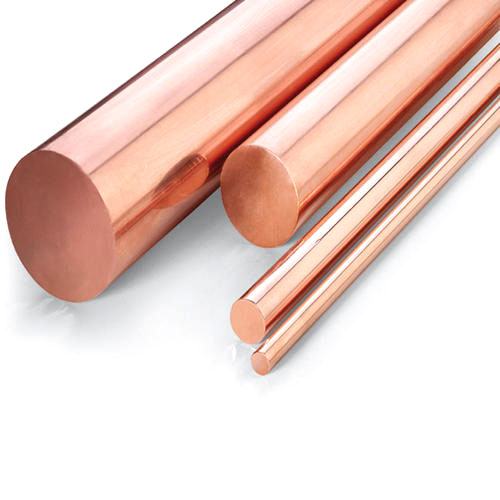

The C18150 Copper Chromium Zirconium is the copper alloy that is less sticky and resists deformation in comparison to other copper chromium alloys. The alloy is mainly used in cap style resistance welding electrodes and is highly recommended for cold as well as hot rolled spot and seam welding

Specifications:

• Diameter : 8mm to 70 mm
• Shape : Round
• Length : 3 - 6 mtr
• Specific Gravity - 8.89
• Type - Rods

The alloy is mainly used in cap style resistance welding electrodes is mainly used in cap style resistance welding electrodes.

Specifications:

• Type : Alloy
• Length : 1~6 mtr
• Shape : Round
• Cu Content :97.95%
• Diameter : 7mm~80mm
