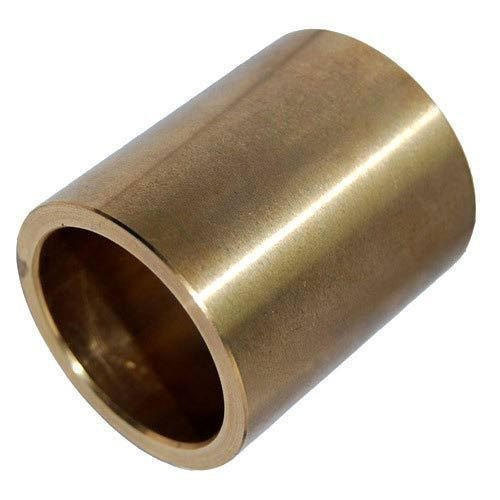

High Tensile Manganese Bronze Hollow Rod

The Manganese Bronze Rod C66800 comes under the category of naval brass and is composed of 60% copper, 39.2% zinc and 0.8% tin. In compliance with typical naval brass, the alloy possesses good strength as well as rigidity. The corrosion resistance towards sea water is achieved due to the presence of zinc in place of tin. The addition of tin also makes the alloy resistant towards dezincification, fatigue, galling, and stress corrosion cracking.

Applications :

• Gears
• Sealing Rings
• Thrust Bearings
• Bushings
• Cams
• Spindles
• Bearings
• Idler Pins
• Connecting Rods
• Drive Shafts
• Valve Seats
• Sleeve Bearings
• Piston Heads

Equivelent Specifications:

Specifications	Designation
ISO	C67300
Europen	C67400

Chemical Composition:

	Cu	Al	Fe	Pb	Mn	Ni	Si	Sn	Zn
Min/Max	60.0-63.0	.25	.35	.50	2.0-3.5	.25	.50-1.5	.30	Rem.
Nominals	61.5	-	-	-	2.7	-	1.0	-	-

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200mm
INGOTS	AS per Specification

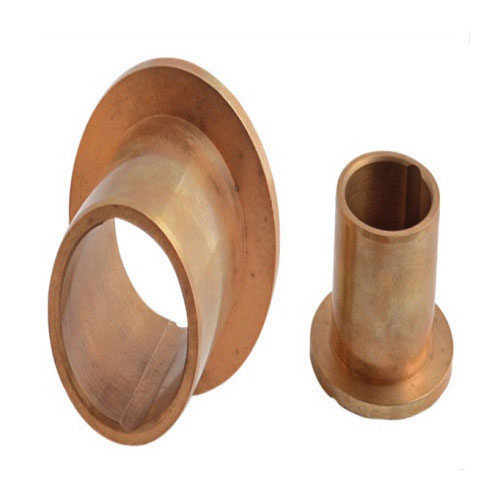

The High Tensile Manganese Bronze - copper casting alloy UNS C86200 consists primarily of copper, zinc, aluminum and High Tensile Manganese Bronze. Manganese existing in UNS C86200 provides an attractive chocolate brown color which is commonly used in architecture. The presence of lead in the alloy improves the longevity of the alloy.

Typical Uses :

• Builders: Hardware Brackets, Structural Parts
• Fasteners: Screw Down Nuts
• Industrial: Struts, Gears, Valve Stems, Bushings, Cams, Wear Rings for Pressing Dies for Wood Pulp Industry, High Strength Machine Parts, Hooks, Frames, Shafts, Marine Racing Propellers, Worm Gears, Pressing Dies for Wood Pulp
• Marine: Rudders, Marine Castings, Boat Parts, Clamps

Equivalent specification

Specifications	Designation
UNS	C86200
ISO	CuZn26Al4Fe3Mn3
JIS	CAC303

Chemical Composition:

	Zn	Cu	Fe	Mn	Ni	Pb	Sn
Min/Max	22-28	60-66	2-4	2.5-5	1.0max	0.2max	0.2 max
Nominals	25	63	3	3.7	-	-	-

Physical Properties:

Product Property	US Customary
Melting Point - Liquidus	1725 F
Melting Point - Solidus	1650 F
Density	0.288 lb/in3  at 68 F
Specific Gravity	7.97
Electrical Resistivity	136.70 ohms-cmil/ft @ 68 F
Electrical Conductivity	8 %IACS @ 68 F
Thermal Conductivity	20.50 Btu · ft/(hr · ft2·°F)at 68F
Coefficient of Thermal Expansion	120 ·10-6  per oF (68-392 F)
Specific Heat Capacity	0.090 Btu/lb/°F at 68 F
Modulas of Elasticity in Tension	15000 ksi
Magnetic Permeability*	1.24

Sizes Available

ROUND RODS/BARS	8mm To 70 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

CATEGORY / STANDARD	ASTM	BS	EN	JIS	DIN	ISO	IS
High Tensile Manganese Bronze	C86200

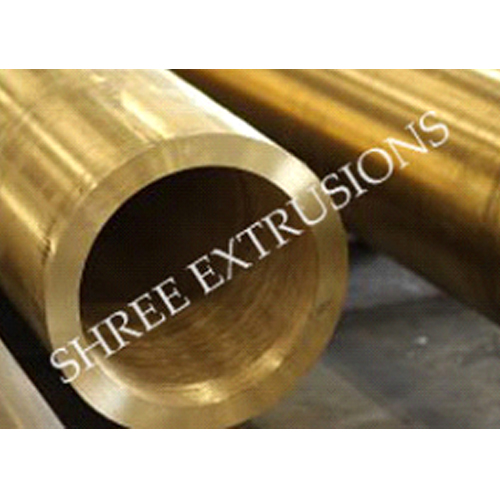

C86300 (SAE 430B) High Tensile Manganese Bronze is ideal for high load, low speed applications that require a combination of outstanding wear characteristics and high bearing strength. Despite its strength characteristics, however, this manganese bronze alloy is not heat-treatable, needs reliable lubrication and should be used in conjunction with hardened shafts. The lead in the alloy's makeup improves machinability without materially affecting its mechanical properties.

Equivalent specification

Specifications	Designation
ASTM	C86300
BS	BS 1400 HTB3
EN	CC762S
JIS	HBSC4
DIN	2.0598
ISO	CuZn25Al6Fe3Mn3
IS	-

Chemical Composition:

	Cu	Pb	Sn	Zn	Ni	Fe	Al	Mn
Min	60.0	-	-	22.0	-	2.0	5.0	2.5
Max	66.0	0.2	0.2	28.0	1.0	4.0	7.5	5.0

Fabrication Properties:

Joining Technique	Suitability
Soldering	Poor
Brazing	Poor
Oxyacetylene Welding	Poor
Gas Shielded Arc Welding	Poor
Coated Metal Arc Welding	Good
Machinability Rating	8

Physical Properties:

Melting Point – Liquidus °F	1693
Melting Point – Solidus °F	1625
Density lb./cu in. at 68°F	0.283
Specific Gravity	7.83
Electrical Conductivity% IACS at 68°F	8
Thermal Conductivity Btu/ sq. ft./ ft. hr./ °F at 68°F	20.5
Coefficient of Thermal Expansion 68-57210⁻⁶ per °F (68 – 572°F)	12
Specific Heat Capacity Btu/ lb. /°F at 68°F	0.09
Modulus of Elasticity in Tension ksi	14200
Magnetic Permeability*	1.09

Sizes Available

TUBES	6.35 mm to 110mm
ROUND WIRES	1 mm to 11mm
ROUND RODS	1.2 to 250 mm
HEX RODS	Min. 5 mm to Max. 65 mm
SQUARE RODS	Min. 4 mm to Max. 60 mm
FLATS	Min. 4 mm thickness and max width of 120mm
PROFILES	As per customer drawings
HOLLOW RODS	Min Bore Size 20mm and Max OD 130mm

CATEGORY/STANDARD	ASTM	BS	EN	JIS	DIN	ISO	IS
High Tensile Manganese Bronze	C86300	BS 1400 HTB3	CC762S	HBSC4	2.0598	CuZn25Al6Fe3Mn3 / CuZn25Al5

C86500High Tensile Manganese bronzes high strength copper-based alloys that include manganese as an alloying agent and high levels of zinc. They are characterized by high strength and hardness. This grade provides tensile strength to 110,000 psi and hardness well over 200 BHN. Manganese bronzes are used for trunnion bearings, heavily stressed gears, gearshift forks, impellers, marine propellers, valve stems, worm gears, and worms. It is also used for highly stressed machine parts.










Equivalent Specifications:

SPECIFICATIONS	ASTM	BS	EN	JIS	DIN	ISO	IS
DESIGNATION	C86500	BS 1400 HTB1	CC765S	HBSC4	CuZn35AlFeMn	2.034	-

Chemical Composition:

	Cu	Pb	Fe	Zn	Ni	Fe	Al	Mn
Min	55.0	-	-	36.0	-	0.40	0.50	0.10
Max	60.0	0.40	1.0	42.0	1.0	2.00	1.5	1.5'

Fabriction Propearties:

Joining Technique	Suitability
Brazing	Fair
Oxyacetylene Welding	Poor
Gas Shielded Arc Welding	Poor
Coated Metal Arc Welding	Poor
Machinability Rating	26

Mechanical Properties:

Sizes Available:

TUBES	6.35 mm to 110mm
ROUND WIRES	1 mm to 11mm
ROUND RODS	1.2 to 250 mm
HEX RODS	Min. 5 mm to Max. 65 mm
SQUARE RODS	Min. 4 mm to Max. 60 mm
FLATS	Min. 4 mm thickness and max width of 120mm
PROFILES	As per customer drawings
HOLLOW RODS	Min Bore Size 20mm and Max OD 130mm

CATEGORY/STANDARD	ASTM	BS	EN	JIS	DIN	ISO	IS
High Tensile Manganese Bronze	C86500	BS 1400 HTB3	CC765S	HBSC4	2.034	CuZn35AlFeMn
