Leaded Brass

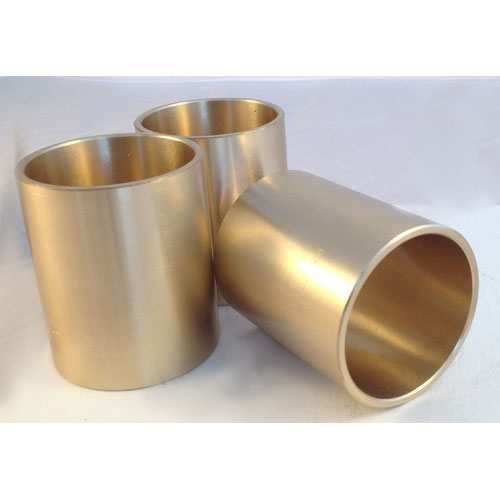

C34500 high leaded brass "64%" is the brass with high machining ability. The increase in lead content will result in increased machining ability with good strength and atmospheric corrosion resistance. The increased lead content will also provide pressure tightness by sealing the shrinkage pores.

Applications :

• Industrial : Pinions, Gears, Valve Stems, Flare Fittings, Adapters, Couplings
• Plumbing: Plumbing Fittings, Plumbers' Brass Goods

Equivalent Specifications:

Specifications	Designation
BS	CZ131 / CZ119
EN	CW601N/CuZn35Pb2
JIS	C3560
DIN	2.0331
ISO
Russian (GOST)

Chemical Composition:

	Cu	Pb	Zn	Fe
Min/Max	62 - 65	1.5 – 2.5	Rem. (Max.)	0.15 (Max.)

Specifications:

Ingots
Bar
Square
Billets
Plate
Sheet
Flat
Rods
Profiles
Wire
Hollows
Hex
Tubes

Fabrication Properties:

Joining Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Poor
Machinability Rating	90

Mechanical Properties:

Form			Temper Code	Tensile Strength (ksi)	YS-0.5% Ext (ksi)	Elongation (%)	Rockwell B Scale	Section Size (in)
Rods			H02	50 Min for Standard 62 Max for Standard	20 Min for Standard	15 Min for Standard	55 Min for Standard 75 Max for Standard	0.75
			H02	57 Min for Standard 80 Max for Standard	25 Min for Standard	7 Min for Standard		<0.50
			H02	55 Min for Standard 70 Max for Standard	25 Min for Standard	10 Min for Standard	60 Min for Standard 80 Max for Standard	<0.50
			H01	42 Min for Standard 62 Max for Standard	15 Min for Standard	20 Min for Standard	40 Min for Standard 70 Max for Standard	1.375
			H01	50 Min for Standard 62 Max for Standard	20 Min for Standard	16 Min for Standard	55 Min for Standard 75 Max for Standard	0.75
			H01	50 Min for Standard 65 Max for Standard	25 Min for Standard	10 Min for Standard		<0.50
			O60	46 Min for Standard	16 Min for Standard	20 Min for Standard		<0.50
			O60	40 Min for Standard	15 Min for Standard	30 Min for Standard	45 Max for Standard	1.375
			O60	44 Min for Standard	15 Min for Standard	25 Min for Standard	45 Max for Standard	0.75

Physical Properties:

Melting Point – Liquids °F			1670
Melting Point – Solidus °F			1630
Density lb/cu in. at 68 °F			0.306
Specific Gravity			8.47
Electrical Conductivity %IACS at 68°F			26
Thermal Conductivity Btu/ sq ft/ ft hr/ F at 68°F			67
Coefficient of Thermal Expansion 68-572 10?6 per °F (68 – 572°F)			11.3
Specific Heat Capacity Btu/ lb /°F at 68°F			0.09
Modulus of Elasticity in Tension ksi			15000
Modulus of Rigidity ksi			5600

Sizes Available

WIRE	1mm TO 8 mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/BARS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	As per Customer Drawing
BILLETS	Up to 200mm
INGOTS	As per Specification

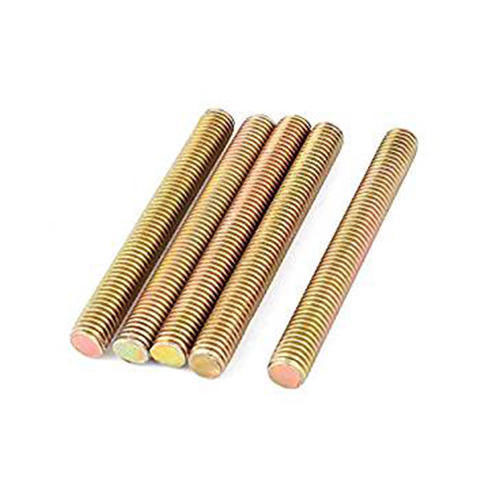

The C35300 Thread Rolling Brass is prepared using the inexpensive thread rolling method and is mainly used for cold forging processes. It is prepared in smooth and long threads and is smooth in finish.

Applications :-

• Builders Hardware : Drawer Pulls, Hinges, Drawer Handles
• Consumer : Bicycle Spoke Nipples, Clock and Watch Parts, Clock Plates and Nuts, Key BlanksFasteners: Nuts, Rivets, Screws
• Industrial: Ratchets, Instrument Backs, Automatic Screw Machine Parts, Valve Stems, Pinions, Flare Fittings, Couplings, Bearing Cages, Channel Plate, Wheels, Gears, Adapters, Engravers Plate
• Plumbing:Faucet Seats, Faucet Stems, Pipe Fittings, Plumbers Fittings, Plumbers' Brass Goods

Equivalent Specifications:

Specifications	Designation
ISO	CuZn37Pb2
Europen	CuZn37Pb2
JIS	CuZn37Pb2
Russian	CZ119

Chemical Composition:

	Cu	Fe	Pb	Zn
Min/Max	60.0-63.0	.15	1.5-2.5	Rem
Nominals	61.5	-	2.0	36.5

Specifications:

End Product	Specification
Bar	ASTM B121
Wire	ASTM B121
Rod	ASTM B453
Ingot	ASTM B121

Fabrication:

Joining Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Poor
Machinability Rating	90

Physical Properties:

Product Property	US Customary	Metric
Melting Point - Liquidus	1670 F	910 C
Melting Point - Solidus	1630 F	888 C
Density	0.306 lb/in3  at 68 F	8.47 gm/cm3  @ 20 C
Specific Gravity	8.47	8.47
Electrical Resistivity	39.90 ohms-cmil/ft @ 68 F	6.63 microhm-cm @ 20 C
Electrical Conductivity	26 %IACS @ 68 F	0.152 MegaSiemens/cm @ 20 C
Thermal Conductivity	67 Btu ? ft/(hr ? ft2?oF)at 68F	116.0 W/m ?  oK at 20 C
Coefficient of Thermal Expansion	11.30 ?10-6  per  oF (68-572 F)	20.3 ?10-6  per  oC (20-300 C)
Modulas of Elasticity in Tension	15000 ksi	103400 MPa
Modulus of Rigidity	5600 ksi	38610 MPa

Sizes Available

WIRE	1mm TO 8 mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200mm
INGOTS	AS per Specification

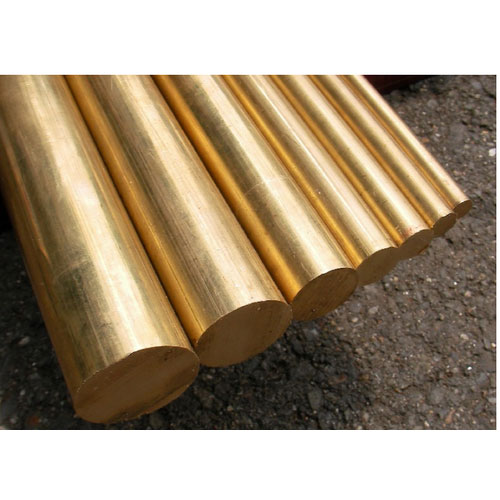

Free Cutting Muntz Metal Alloy C37000 is excellent for hot working between the temperatures 1200°F to 1300°F. The alloy holds poor capacity of working under cold conditions. If the alloy has to be used under cold working conditions, it is recommended that this be followed by stress relieving at 550°F for 1 hour to reduce the possibility of stress corrosion cracking.








Equivalent Specifications:

Specifications	Designation
BS	CZ-124
Europen	CuZn38Pb1
Portugies	CuZn39Pb1
Russian	LS63-3

Typical Uses

Product Category	Product	Reason Category	Reason
Industrial	Automatic Screw Machine Parts	Corrosion Resistance	Corrosion Resistance
	Automatic Screw Machine Parts	Machining Characteristics	Machinability

Chemical Composition:

	Cu	Fe	Pb	Zn
Cu + Sum of Named Elements, 99.6% min.
Min (%)	59.0		0.8	Rem
Max (%)	62.0	0.15	1.5

Fabrication:

Joining Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Excellent
Machinability Rating	70

Physical Properties

Product Property
Melting Point - Liquidus°F	1650
Melting Point - Solidus°F	1630
Densitylb/cu in. at 68°F	0.304
Specific Gravity	8.41
Electrical Conductivity% IACS at 68°F	27
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F	69
Coefficient of Thermal Expansion 68-57210?6 per °F (68 – 572°F)	11.6
Specific Heat CapacityBtu/ lb /°F at 68°F	0.09
Modulus of Elasticity in Tensionksi	15000
Modulus of Rigidityksi	5600

Sizes Available

WIRE	1mm TO 8 mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200mm
INGOTS	AS per Specification

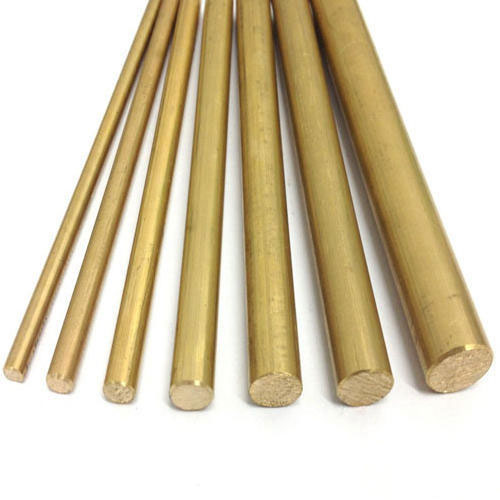

C36000 Free Machining Brass is also called Free Cutting Brass. The brass is appreciated for features such as knurling, thread rolling and good machining ability. It is deal for high machining operations with the rating of 100 against all the rated copper alloys. The offered brass can easily be brazed or soldered and is also corrosion resistant.

Applications :

• Construction Industry: Builders Hardware, Lock Bodies, Hardware, Fittings
• Consumer: Hot Combs (to Straighten Hair)
• Fasteners: Bolts, Nuts, Screws
• Industrial: Faucet Components, Pneumatic Fittings, Fluid Connectors, Automatic Screw Machine Parts, Unions, Adapters, Screw Machine Products, Gauges, Valve Seats, Valve Trim, Valve Stems, Nozzles, Pinions, Gears
• Plumbing: Plumbers' Brass Goods, Faucet Stems, Faucet Seats, Plumbing Fittings

Equivalent Specifications:

Specifications	Designation
ISO	CuZn36Pb3
Europen	CuZn36Pb3
JIS	CZ-124
Russian	LS63-3

Chemical Composition:

	Cu	Fe	Pb	Zn
Min/Max	60.0 - 63.0	0.35	2.5 - 3.7	Rem
Nominals	61.5000	-	3.1000	35.4000

Specifications:

End Product	Specification
Bar	AMS 4610, ASTM B16, SAE J461, J463
Rod	AMS 4610, ASTM B16, SAE J461, J463
Shapes	ASTM B16, SAE J461, J463
Valves	MILITARY MIL-V-18436
Wire	ASTM B16

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Fair
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Not Recommended
Machinability rating	100
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property			US Customary	Metric
Coefficient of Thermal Expansion			11.4 ·10-6 per oF (68-572 F)	20.5 · 10 6? per °C (20-300 C)
Density			0.307 lb/in3 @ 68 F	8.5 gm/cm3 @ 20 C
Electrical Conductivity			26 %IACS @ 68 F	0.152 MegaSiemens/cm @ 20 C
Electrical Resistivity			39.9 ohms-cmil/ft @ 68 F	6.63 microhm-cm @ 20 C
Melting Point Liquid US			1650 F	899 C
Melting Point Solid US			1630 F	888 C
Modulas of Elasticity in Tension			14000 ksi	96500 MPa
Modulas of Rigidity			5300 ksi	36500 MPa
Specific Gravity			8.5	8.5
Thermal Conductivity			67.0 Btu · ft/(hr · ft2 ·°F) @ 68 F	116.0 W/m · °K at 20 C

Sizes Available

WIRE	1mm TO 8 mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200mm
INGOTS	AS per Specification

ASTM B124

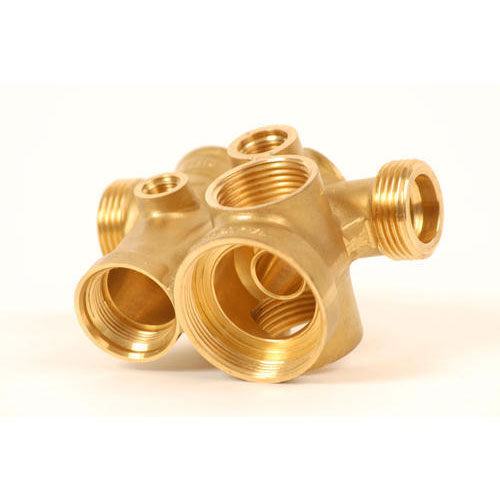

The exceptional hot-working characteristics of C37700 makes it the classic alloy for forgings. With outstanding flow characteristics, this alloy can be forged and machined into sophisticated and most complex components. C37700 can also easily be electroplated with various finishes.

Typical Uses for C37700 Forging Brass :-

• Builders Hardware :Door Handles, Decorative Knobs, Furniture Hardware
• Consumer :Golf Putters, Valve Bodies for Scuba & Propane Spray Tanks, Valve Bodies for Agricultural Spray Tanks
• Electrical:Covers, Fuse Bodies
• Industrial:Valve Components, Forgings and Pressings of All Kinds

Sizes Available:

Hollow Rods	Min Bore Size 20 mm and Max OD 100 mm
Round Rods	6mm To 130 mm
Hex	5mm To 60mm
Square	4mm To 60mm
Flat	5mm Min Thickness and max Width 120mm
Profiles / Sections	AS per Customer Drawing
Billets	Up to 200 mm
Ingots	AS per Specification

Specifications:

Equivelent Specifications	Designation
Bar, Forging	ASTM B124
Forgings, Die	AMS 4614, ASME SB283, ASTM B283, SAE J461, J4623
Rod, Forging	AMS 4614, ASTM B124
Shapes, Forging	ASTM B124

Chemical Composition:

	Cu	Fe	Pb	Zn
Min/Max	58.0 - 61.0	0.3	1.5 - 2.5	Rem
Nominals	59.5000	-	2.0000	38.0000

Specifications:

End Product	Designation
ISO	CuZn40Pb2
Europen	CuZn40Pb2
BS	CZ-122
JIS	C 3561
Russian	LS59-3

Fabrication:

Brazing	Suitability
Butt Weld	Fair
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Excellent
Coated Metal Arc Welding	Not Recommended
Forgeability Rating	100
Gas Sheilded Arc Welding	Not Recommended
Machinability rating	80
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	11.5 ·10-6 per oF (68-572 F)	20.7 · 10 6? per °C (20-300 C)
Density	0.305 lb/in3 @ 68 F	8.44 gm/cm3 @ 20 C
Electrical Conductivity	27 %IACS @ 68 F	0.158 MegaSiemens/cm @ 20 C
Electrical Resistivity	38.4 ohms-cmil/ft @ 68 F	6.38 microhm-cm @ 20 C
Melting Point Liquid US	1640 F	893 C
Melting Point Solid US	1620 F	882 C
Modulas of Elasticity in Tension	15000 ksi	103400 MPa
Modulas of Rigidity	5600 ksi	38610 MPa
Specific Gravity	8.44	8.44
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F	377.1 J/kg · °K at 293 K
Thermal Conductivity	69.0 Btu · ft/(hr · ft2 ·°F) @ 68 F	119.4 W/m · °K at 20 C

Excellent hot and cold workability; good forge ability. Fabricated by bending, coining, coppersmith, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.
Typical Uses for C38000 Architectural Bronze "Low Leaded" Brass:

• Architecture : Thresholds, Architectural Sections, Door Frames, Window Frames
• Builders Hardware :Hinges, Builders Hardware, Butts
• Other :  Extruded Shapes

Equivalent Specifications:

Specifications	Designation
ISO	CuZn40Pb2
Europen	CuZn40Pb2
BS	CZ-122
JIS	C 3561
Russian	LS59-3

Chemical Composition:

	Al	Cu	Fe	Pb	Sn	Zn
Min/Max	0.5	55.0 - 60.0	0.35	1.5 - 2.5	0.3	Rem
Nominals		57.5000	-	2.0000	-	-

Specifications:

End Product	Specification
Shapes	ASTM B455

Sizes Available

WIRE	1mm TO 8 mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200mm
INGOTS	AS per Specification

ASTM B124
The exceptional hot working characteristics of C37700 makes it the classic alloy for forgings. With outstanding flow characteristics, this alloy can be forged and machined into sophisticated and most complex components. C37700 can also easily be electroplated with various finishes.

Typical Uses for C37700 Forging Brass :-

• Builders Hardware :Hinges, Drawer Pulls, Lock Cams, butts, Slide Bolts, Lock Bodies, Drawer Handles
• Consumer :Picture Frames, Funeral Urns, Lamps, Fireplace Screens, Straight Edges, Handles, Hot Combs (to straighten hair), Squeegee Retainers
• Architecture:Elevator Trim, Thresholds, Door Frames, Handrails, Terrazzo Strip, Shower Doors, Privacy Sun Grills, Trim, Store Fronts, Architectural Forgings, extrusions, Architectural Moldings, Window Mullions, Bathroom Partition Brackets
• Industrial:Valve Trim, Press Brake Ram Clamps, Valve Stems, Valves, Gauges, Valve Seats, Forgings, Wheeled Racks

Equivalent Specifications:

Specifications	Designation
ISO	CuZn39Pb3
Europen	CuZn39Pb3
BS	CZ-121
JIS	C 3561
Russian	LS59-3

Chemical Composition:

	Cu	Fe	Pb	Zn
Min/Max	55.0 - 59.0	0.35	2.5 - 3.5	Rem
Nominals	57.0000	-	3.0000	40.0000

Specifications:

End Product	Designation
Shapes	ASTM B455

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Excellent
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Not Recommended
Machinability rating	90
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	11.65 ·10-6 per oF (68-572 F)	20.9 · 10 6? per °C (20-300 C)
Density	0.306 lb/in3 @ 68 F	8.47 gm/cm3 @ 20 C
Electrical Conductivity	28 %IACS @ 68 F	0.164 MegaSiemens/cm @ 20 C
Electrical Resistivity	37 ohms-cmil/ft @ 68 F	6.15 macrame-cm @ 20 C
Melting Point Liquid US	1630 F	888 C
Melting Point Solid US	1610 F	877 C
Modulas of Elasticity in Tension	14000 ksi	966500 MPa
Modulas of Rigidity	5300 ksi	36540 MPa
Specific Gravity	8.47	8.47
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F	377.1 J/kg · °K at 293 K
Thermal Conductivity	71.0 Btu · ft/(hr · ft2 ·°F) @ 68 F	122.9 W/m · °K at 20 C

Sizes Available:

Hollow Rods	Min Bore Size 20 mm and Max OD 100 mm
Round Rods	6mm To 130 mm
Hex	5mm To 60mm
Square	4mm To 60mm
Flat	5mm Min Thickness and max Width 120mm
Profiles / Sections	AS per Customer Drawing
Billets	Up to 200 mm
Ingots	AS per Specification
