Leaded Copper

The C19140 Leaded Nickel Copper is the heat treatable alloy which is specifically be used for cold heading and automatic screw machine applications.

Typical Uses:

• Electrical : Contacts, Sockets, Connector Pins
• Density : 0.320 lb/in3 at 68 F

Chemical Composition:

	Cu (1)	Fe	Pb	Ni	P	Sn	Zn
Min/Max	Rem.	0.05	.40 - .8	.8 - 1.2	.15 - .35	0.05	0.5
Nominals	98.2	-	0.6	1	0.2	-	-

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Poor
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Not REcommended
Machinability rating	75
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Melting Point - Liquidus	1980 F	1082 C
Melting Point - Solidus	1900 F	1038 C
Density	0.320 lb/in³ at 68 F	8.88 gm/cm³ @ 20 C
Specific Gravity	8.88	8.88
Electrical Conductivity	55 %IACS @ 68 F	0.318 MegaSiemens/cm @ 20 C
Thermal Conductivity	146 Btu ?? ft/(hr ?? ft2??oF)at 68F	253.0 W/m ?? oK at 20 C
Modulas of Elasticity in Tension	18000 ksi	124100 MPa
Modulus of Rigidity	6000 ksi	12410 MPa

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

Product Details :

Brand	Shree Extrusion
Size	1/4''-1'', 1''-2'', 2''-3'', 10''-20'', 3''-10''
Length	0-2 meters, 4-6 meters, 6-8 meters, 2-4 meters

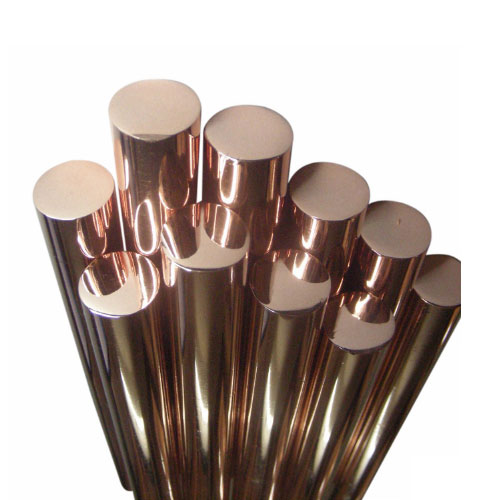

C19160 Leaded Nickel Copper alloy is a free-cutting bronze alloy, which is mainly used for manufacturing connectors in the electronics industry. The alloy is high on machining ability and is appreciated for high strength, electrical conductivity and corrosion resistance.

Applications:

• Electrical Applications : Contacts, Sockets, Connector Pins
• Density Applications : 0.320 lb/in3 at 68 F

Chemical Composition:

	Cu (1)	Fe	Pb	Ni	P	Sn	Zn
Min/Max	Rem.	0.05	.8 - 1.2	.8 - 1.2	.15 - .35	0.05	0.5
Nominals	97.8	-	1	1	0.2	-	-

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Poor
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Not REcommended
Machinability rating	80
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

	US Customary	Metric
Melting Point - Liquidus	1980 F	1082 C
Melting Point - Solidus	1900 F	1038 C
Density	0.320 lb/in³ at 68 F	8.88 gm/cm³ @ 20 C
Specific Gravity	8.88	8.88
Electrical Conductivity	55 %IACS @ 68 F	0.318 MegaSiemens/cm @ 20 C
Thermal Conductivity	146 Btu ?? ft/(hr ?? ft2??oF)at 68F	253.0 W/m ?? oK at 20 C
Modulas of Elasticity in Tension	18000 ksi	124100 MPa
Modulus of Rigidity	6000 ksi	12410 MPa

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

Spec Equivalents: ASTM B140

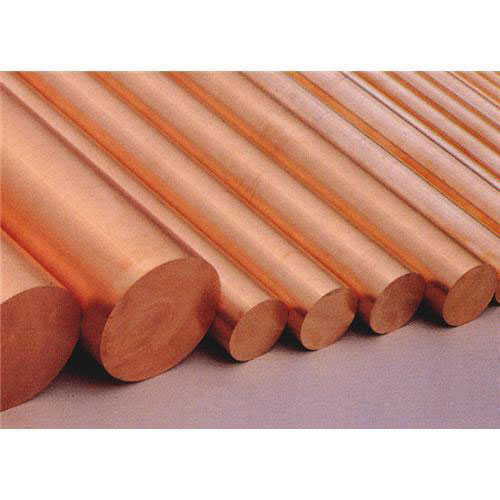

The C31400 Leaded Commercial Bronze is the combination of natural corrosion resistance with the machining ability of leaded brass. It is the combination of 89% copper and 9% zinc and also contains 2% lead that provides free-cutting characteristics. The low zinc content provides corrosion resistance in potable water with a golden color. The alloy is suitable for outdoor use owing to its resistance towards stress corrosion cracking and where the highest strength is not required.

Applications:

• BUILDERS HARDWARE : Door Knobs
• ELECTRICAL : Connectors for Wire and Cable, Electrical Plug Type Connectors
• FASTENERS : Screws, Nuts
• INDUSTRIAL : Pickling Fixtures, Pickling Racks, Pickling Crates, Screw Machine Parts

Specifications:

End Product	Specification
Bar	ASTM B140
Rod	ASTM B140
Shapes	ASTM B140
Valves	MILITARY MIL-V-18436

Chemical Composition:

	Cu	Fe	Pb	Ni	Zn
Min/Max	87.5 - 90.5	0.1	1.3 - 2.5	0.7	Rem
Nominals	89	-	1.9	-	9.1

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Poor
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Not Recommended
Machinability rating	80
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	10.2 ·10-6 per oF (68-572 F)	18.4 · 10 6? per °C (20-300 C)
Density	0.319 lb/in3 @ 68 F	8.83 gm/cm3 @ 20 C
Electrical Conductivity	42 %IACS @ 68 F	0.246 MegaSiemens/cm @ 20 C
Electrical Resistivity	24.7 ohms-cmil/ft @ 68 F	4.11 microhm-cm @ 20 C
Melting Point Liquid US	1900 F	1038 C
Melting Point Solid US	1850 F	1010 C
Modulas of Elasticity in Tension	17000 ksi	117000 MPa
Modulas of Rigidity	6400 ksi	44130 MPa
Specific Gravity	8.83	8.83
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F	377.1 J/kg · °K at 293 K
Thermal Conductivity	104.0 Btu · ft/(hr · ft2 ·°F) @ 68 F	180.0 W/m · °K at 20 C

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification

Spec Equivalents: ASTM B140

The C31600 Nickel Leaded Commercial Bronze is the combination of 89% copper, 8% zinc, 2% lead and also contains 1% nickel. The alloy is resistant towards corrosion with higher tensile and yield strength, which is the result of addition of nickle to the alloy. The alloy is resistant towards stress cracking and is suitably be used in high strength outdoor applications.

Applications:

• BUILDERS HARDWARE : Hardware
• ELECTRICAL : Connectors
• FASTENERS : Fasteners, Nuts, Screws
• INDUSTRIAL : Screw Machine Parts

Specifications:

End Product	Specification
Bar	ASTM B140
Rod	ASTM B140
Shapes	ASTM B140
Valves	MILITARY MIL-V-18436

Chemical Composition:

	Cu	Fe	Pb	Ni	P	Zn
Min/Max	87.5 - 90.5	0.1	1.3 - 2.5	0.7 - 1.2	0.04 - 0.1	Rem
Nominals	89.0000	-	1.9000	1.0000	0.7000	8.1000

Fabrication:

Joining Technique	Suitability
Brazing	Good
Butt Weld	Fair
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Poor
Coated Metal Arc Welding	Not Recommended
Gas Sheilded Arc Welding	Not Recommended
Machinability rating	80
Oxyacetylene Welding	Not Recommended
Seam Weld	Not Recommended
Soldering	Excellent
Spot Weld	Not Recommended

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	10.2 ·10-6 per oF (68-572 F)	18.4 · 10 6? per °C (20-300 C)
Density	0.32 lb/in3 @ 68 F	8.86 gm/cm3 @ 20 C
Electrical Conductivity	32 %IACS @ 68 F	0.187 MegaSiemens/cm @ 20 C
Electrical Resistivity	32.4 ohms-cmil/ft @ 68 F	5.39 microhm-cm @ 20 C
Melting Point Liquid US	1900 F	1038 C
Melting Point Solid US	1850 F	1010 C
Modulas of Elasticity in Tension	17000 ksi	117000 MPa
Specific Gravity	8.86	8.86
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F	377.1 J/kg · °K at 293 K
Thermal Conductivity	81.0 Btu · ft/(hr · ft2 ·°F) @ 68 F	140.2 W/m · °K at 20 C

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
