Brass Tubes

Our rich industry experience as well as product knowledge allow us to successfully handle the demands of Brass tubes, Brass Metal Tubes, Brass Copper Tubes. Our well equipped manufacturing unit allows us to ensure quality in accordance with defined international standards. Well recognized for their superior corrosion resistant finish, these brass tubes also have high wear resistance as well as low friction coefficient against steel.

These Brass Tubes are used in different areas including Furniture & Lighting Fixtures, General Engineering Purposes, Arsenic Brass Tubes for Sugar Industries, Admiralty Brass Tubes Tubes for Evaporators & Coolers, Aluminium Brass Tubes Tubes, Brass Tubes for Sanitary Fittings & Accessories and Brass Tubes for Agriculture Equipment.

We have with us rich experience in successfully handling the demands of varied assortment of 70/30 Brass Tubes. These are precision manufactured using premium grade material that are sourced from trusted and reliable dealers, thus making these brass tubes perfect to be used in different industries.

Some of the features of these 70/30 Brass Tubes are :

• Sturdy in construction
• Easy to install
• Durable finish
• Corrosion proof

Having established a strong foothold in the market, these are also made available with attributes like good finish, accurate dimensions, high tensile strength, superior toughness and impact resistance, easy to install, finishing, rust proof and availability in custom thickness and sizes.

These are used in areas such as :

• Sugar factories
• Heavy engineering industry
• Power generation plants
• Heat exchangers
• Automobile industry
• Condensers
• Plumbing applications
• Hand Pumps
• Ammunition and General Engineering

Specifications:

70/30 Brass

ASTM B 135 C 26000 BS 2871 Part 3 CZ - 126 EN 12451 CuZn30As NFA 51 102 CuZn30 JIS H 3300 C 2600 AS 1572 26130

We are a leading name in the field of offering a complete range of 63/37 Brass Tubes. Our team of experienced technicians allows us to manufacture these in accordance to defined guidelines and norms.

These brass tubes are recognized for :

• Excellent performance
• Superior durability
• Rugged construction
• Corrosion resistance
• Superior rust-proof finish
• Accurate dimensions

These brass tubes are available in both standard as well as customized forms at affordable prices. These precision engineered 63/37 Brass Tubes are provided in different sizes, thicknesses, elongation and hardness.

Applications :-
Some of the applications these are used in include :

• Furniture & Lighting Fixtures
• Sanitary Fittings & Accessories
• Agriculture Equipments
• General Engineering Industry

Specifications:

63/37 Brass

ASTM B135 C 27000 JIS H33000 C 2700 ISO 1637 CuZn37

Admiralty Brass Tubes are generally used with fresh, clean waters free from suspended abrasive solids and originating from rivers lakes and canals. It may also be used with brackish or even saline water. The inhibitive action of arsenic protects Admiralty Brass Tubes from dezincification and the fully annealed alloy can also withstand stress-corrosion cracking. In waters containing less than 2000 ppm dissolved solids its use is allowed at flow rates of up to 3 m/s (10 ft/s) in sea waters a maximum speed of 1 m/s (3,0 ft/ s) is recommended. The presences of tin improve resistance to general corrosion in slightly polluted (sulphurised) water.

Specifications:

Admiralty Brass Tubes

ASTM B 111 C 44300 ASME SB 111 C 44300 BS 2871 Part 3 CZ - 111 EN 12451 CuZn28 Sn1As NFA 51 102 CuZn29Sn1 JIS H 3300 C 4430

Chemical Requirements
Copper	70.0 to 73.0%
Tin	1.0 to 1.5%
Arsenic	0.02 to 0.06%
Zinc	Remainder
Total Imp.	0.30% max.
Physical Properties
Condition	Hardness
Annealed (O)	75 max
Temper Annealed (TA)	80 to 105
As manufactured (M)	150 min.
Further Tests
Drift Test Flattening Test Microstructure Test MN Test Eddy Current Optiona Hydraulic Testl
Uses
Dezincification resistant brass, used in fresh water generally used in petroleum industry because of good corrosion resistant to sulphur bearing gases and cooling water.

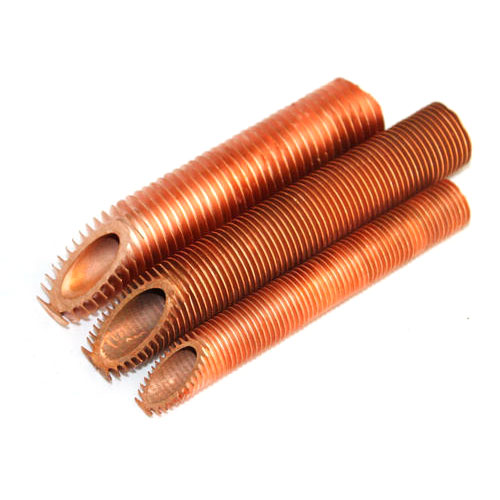

Aluminium Brass Tubes are generally used with brackish or sea water. Through its arsenic inhibition, it is virtually immune from dezincification and, when fully annealed, also practically free from stress-corrosion cracking. Aluminium Brass Tubes is resistant to pitting and even more so to impingement attack: in fresh water, a velocity of up to 3,5 m/s ( 11, 5 f/s) is admitted; it should be reduced to about 2,5 m/s (8,5 f/s) when operating in sea water.



Specifications:

Aluminium Brass Tubes

ASTM B 111 C 68700 ASME SB 111 C 68700 BS 2871 PART 3 CZ - 110 EN 12451 CuZN20 AL2As NFA 51 102 CuZn22 Al2 JIS H - 3300 C 6870

Chemical Requirements
Copper	76.0 to 78.0%
Aluminium	1.8 to 2.3%
Arsenic	0.02 to 0.06%
Zinc	Remainder
Total Imp.	0.30% max.
Physical Properties
Condition	T.S.Kg/mm2	EL% Min
Annealed	30 to 37.5	40%
Temper Annealed (TA)	35.50 min.	35%
As manufactured (M)	46 min.	-
Further Tests
Drift Test Flattening Test Microstructure Test MN Test Eddy Current Optional
Uses
Excellent resistance to impinging action of turbulently flowing sea and fresh water, Used in marine and power station condensers and petroleum refineries.
